介绍/Introduction
Pruftechnik 单激光技术：50 余年来的黄金标准。最大限度地提高近距离测量精度，消除预对准，并过滤不良数据。现采用全新模块化平台，可实现定制化：按需付费。随时升级。

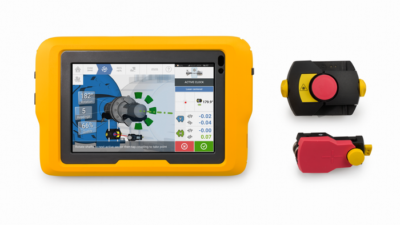

Pruftechnik Single Laser Technology: The gold standard for over 50 years. Maximizes close-range measurement accuracy, eliminates pre-alignment, and filters out bad data. Now featuring a new modular platform for customization: Pay as you go. Upgrade anytime.
主要功能/Key Features
· 全新 – 您的传感器和软件包将与您一同发展：您的校准工具，使用我们全新的模块化平台，按需付费，准备就绪后升级，并可在任何 Android 平板电脑上使用
· 单激光技术：极高的重复性，短距离内精度更高，无需预对准
· 机组对中：2台机器
· 核心对齐任务：水平/垂直对准、软脚、扭曲/平整度、直线度、机器运动、非耦合对准
· 使用友好：具有易于使用的触摸屏显示屏和带有引导程序的 3D 动画，使不同技能水平的用户更容易完成复杂的对齐任务（连接 WiFi 和蓝牙）
· 简化的报告和分析：用户友好的监控和分析软件，用于发送现场数据、趋势分析和报告
· Brand New – Your sensors and software package evolve with you: Your calibration tool, powered by our new modular platform, operates on a pay-as-you-go basis, upgrades when ready, and runs on any Android tablet
· Single Laser Technology: Exceptional repeatability, higher accuracy at short distances, no pre-alignment required
· Machine Alignment: 2 machines
· Core Alignment Tasks: Horizontal/vertical alignment, soft footing, warping/flatness, straightness, machine movement, decoupled alignment

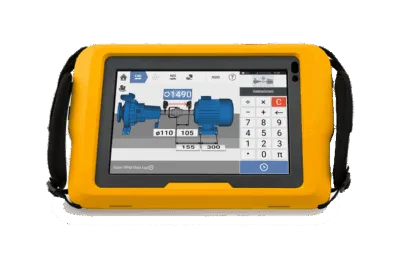

· User-Friendly: Features an intuitive touchscreen display with guided 3D animations, enabling users of varying skill levels to complete complex alignment tasks with ease (connects via WiFi and Bluetooth)
· Simplified reporting and analysis: User-friendly monitoring and analysis software for sending field data, trend analysis, and reporting
应用/Application
基本轴对中
卧式标准机械、风力涡轮机、船舶螺旋桨轴、带短挠性联轴器的垂直安装机械
涡轮机械（更关键和更高速度），3 机组，滑动轴承/白色金属轴承
核心对准
涡轮机械（更关键和更高速度），6 机组，滑动轴承/白色金属轴承
燃气轮机，万向轴，6 机组，非耦合轴
任何立式机器类型：立式垫片联轴器、立式直角齿轮箱
复杂的机器设置
任何立式机器类型：立式垫片联轴器、立式直角齿轮箱
万向轴（无需拆卸轴）
大型多联轴器机器、冷却塔、蒸汽轮机、管道应变、14台机组
在危险或有害环境中进行校准。1 区 ATEX/IECEX 认证。
Basic Shaft Alignment
Horizontal standard machinery, wind turbines, marine propeller shafts, vertically mounted machinery with short flexible couplings
Turbomachinery (critical and high-speed), 3 units, sliding bearings/ball bearings
Core Alignment
Turbomachinery (critical and high-speed), 6 units, slide bearings/ball bearings
Gas turbines, universal joints, 6 units, non-coupled shafts
Any vertical machine type: Vertical shim couplings, vertical right-angle gearboxes
Complex machine setups
Any vertical machine type: Vertical spacer couplings, vertical right-angle gearboxes
Universal joints (no shaft disassembly required)
Large multi-coupling machines, cooling towers, steam turbines, pipeline strain, 14 units
Alignment in hazardous or harmful environments. Zone 1 ATEX/IECEX certified.
