介绍/Introduction：

机器园区的在线状态监测

· 12、16 或 20 个模拟通道，用于振动监测和信号处理

· 时间信号、特征值、FFT 频谱、动能波路径（轨道）、扭矩

· 用于预测性维护的智能且简便的 IIoT 解决方案

· 提供先进的报警处理工具来监控特定的机器故障

· 订阅 OMNITREND Asset View 软件即可完全访问数据可视化门户

· 安装灵活（DIN 导轨等）

Online Condition Monitoring for Machine Parks

· 12, 16, or 20 analog channels for vibration monitoring and signal processing

· Time signals, eigenvectors, FFT spectrum, kinetic wave paths (trajectories), torque

· Intelligent and straightforward IIoT solution for predictive maintenance

· Advanced alarm handling tools to monitor specific machine failures

· Subscribe to OMNITREND Asset View software for full access to the data visualization portal

· Flexible installation (DIN rail, etc.)

产品描述/Product Description

· VIBGUARD IIoT 提供 12、16 或 20 个测量通道供您选择，这些通道可并行同步采样。这样即使是最复杂的设备也可以得到持续监控，并防止意外停机。

· VIBGUARD IIoT 自主工作并自动执行测量任务。时间信号、特征值、FFT 频谱、动能波路径（轨道）或扭矩等测量数据几乎实时并行处理，并可与正在运行的生产过程相关联。快速数据处理使 VIBGUARD IIoT 成为运行周期短的系统（如起重机、机床、压力机）或具有高度动态过程的机器（如测试台、风力涡轮机或链式输送机）的完美监控和诊断系统。所有关键风扇和泵也可通过 VIBGUARD IIoT 轻松而有效地进行监控。

· VIBGUARD IIoT 可在 12、16 或 20 个并行通道上测量时间信号、总体值、FFT 频谱、冲击脉冲、轨道等，适用于几乎所有类型的信号输入。振动、转速脉冲、温度和任何其他相关诊断输入（如扭矩）都经过处理，并可与实际制造过程相关联。

· 测量结果通过 MQTT 接口无缝集成到过程控制系统。智能数据管理工具可实现高效的数据缩减。

· 先进的警报处理工具（例如可变频带警报和频带趋势）可用于监控特定的机器故障（例如不平衡、错位、齿轮啮合和轴承故障）。

· VIBGUARD IIoT 可以轻松连接到实时保护系统的缓冲输出，以便对涡轮机械进行深入分析和监控。

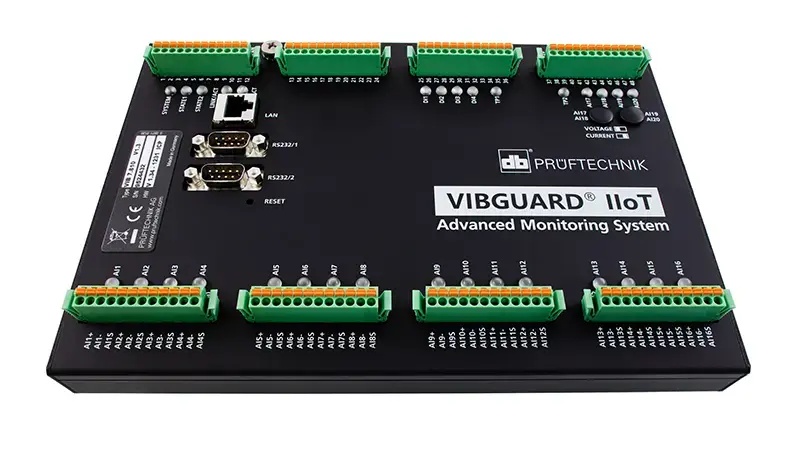

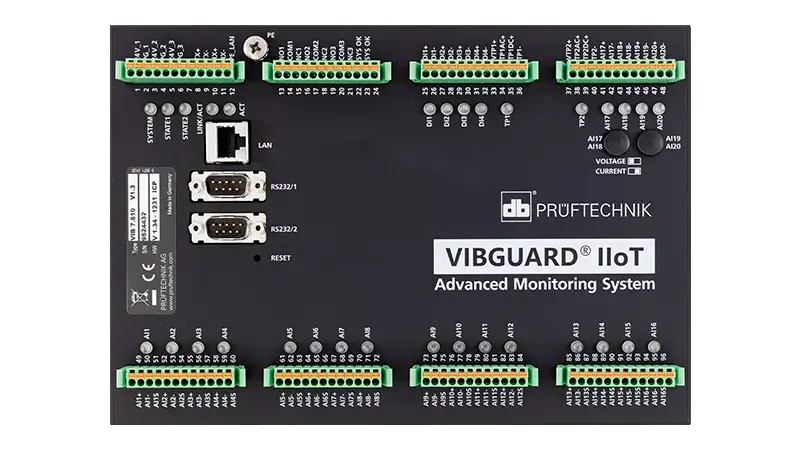

· VIBGUARD IIoT offers 12, 16, or 20 measurement channels for selection, all capable of parallel synchronous sampling. This enables continuous monitoring of even the most complex equipment, preventing unexpected downtime.

· VIBGUARD IIoT operates autonomously and automatically executes measurement tasks. Measurement data—including time signals, characteristic values, FFT spectra, kinetic wave paths (trajectories), or torque—is processed nearly in real-time in parallel and can be correlated with ongoing production processes. Rapid data processing makes VIBGUARD IIoT the perfect monitoring and diagnostic system for systems with short operating cycles (e.g., cranes, machine tools, presses) or machines with highly dynamic processes (e.g., test benches, wind turbines, chain conveyors). All critical fans and pumps can also be monitored easily and efficiently via VIBGUARD IIoT.

· VIBGUARD IIoT measures time signals, overall values, FFT spectra, shock pulses, tracks, and more across 12, 16, or 20 parallel channels, accommodating nearly all signal input types. Vibration, speed pulses, temperature, and any other relevant diagnostic inputs (e.g., torque) are processed and correlated with the actual manufacturing process.

· Measurement results are seamlessly integrated into process control systems via MQTT interfaces. Intelligent data management tools enable efficient data reduction.

· Advanced alarm handling tools (e.g., variable frequency band alarms and frequency band trends) monitor specific machine faults (e.g., imbalance, misalignment, gear meshing, and bearing failure).

· VIBGUARD IIoT easily connects to buffered outputs from real-time protection systems for in-depth analysis and monitoring of turbomachinery.
